Automated Client Onboarding & Notification Pipeline

Project Overview

To Achieve: Design a zero-touch onboarding architecture that instantly reacts to new inbound inquiries. The system must parallelize client-facing acknowledgments with internal operational updates, ensuring no manual data entry is required when a new lead enters the pipeline.

Architecture Workflow

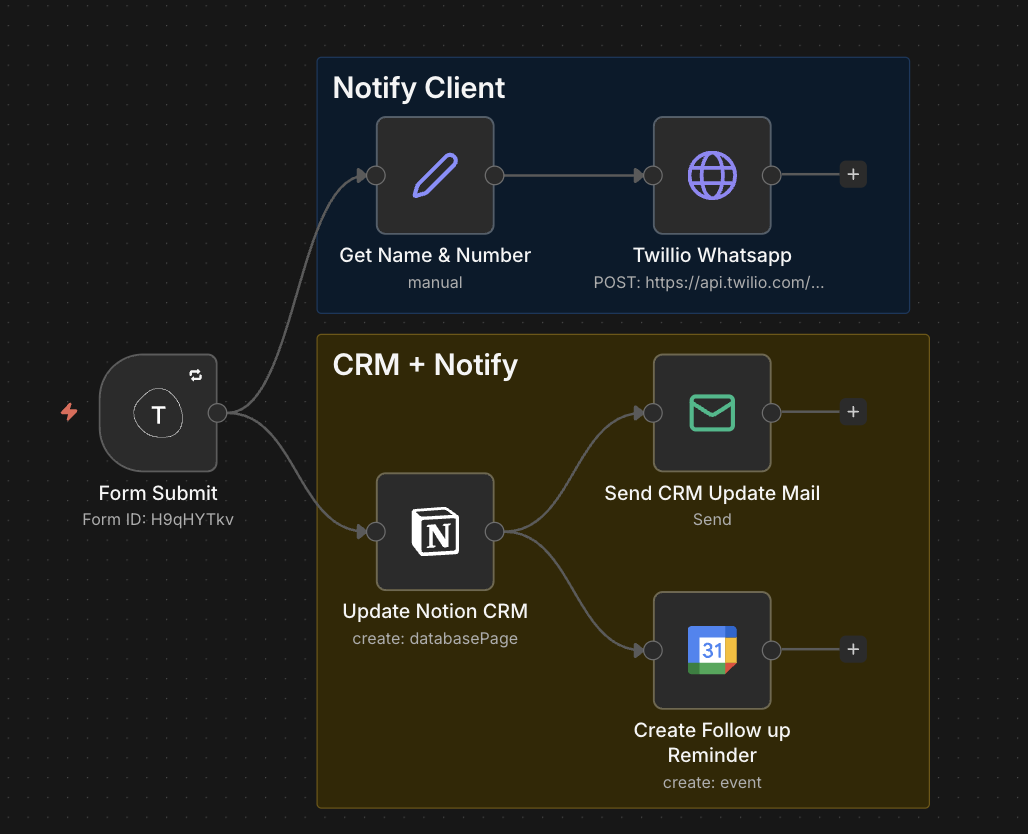

The n8n orchestration pipeline mapping the parallel execution of client notifications and internal CRM synchronization.

Key Features

• Event-Driven Triggering: The pipeline is instantly instantiated via a webhook tied to a Typeform submission, capturing raw lead data in real-time.
• Parallel Execution Paths: Utilized n8n's branching capabilities to simultaneously execute two critical modules: "Notify Client" and "CRM + Notify", reducing overall execution latency.
• Automated Client Communication: The system parses the form payload to extract the lead's name and contact number, dynamically constructing and dispatching a personalized WhatsApp greeting via the Twilio API.
• Operations & CRM Synchronization: Data is automatically structured and pushed into a Notion CRM database. Upon successful commit, the system branches again to send an internal status email and provision a follow-up reminder in Google Calendar.

Outcome

The deployment established a completely frictionless intake process. By automating the immediate WhatsApp touchpoint, client engagement and perceived responsiveness drastically improved. Simultaneously, the internal team eliminated manual data entry, relying on the automated CRM population and calendar event generation to drive their follow-up schedules.

Improvements

• Intelligent Routing: Introducing an LLM evaluation step between the trigger and the branches to analyze form responses for sentiment and intent, allowing for dynamic assignment to specific team members.
• Omnichannel Team Alerts: Swapping the standard email notification for a richer Slack or Discord webhook integration, complete with actionable buttons (e.g., "Claim Lead", "Mark as Spam").
• Stateful Retry Logic: Implementing dedicated error-handling nodes on the Twilio and Notion HTTP requests to gracefully manage API rate limits or transient downtimes.
